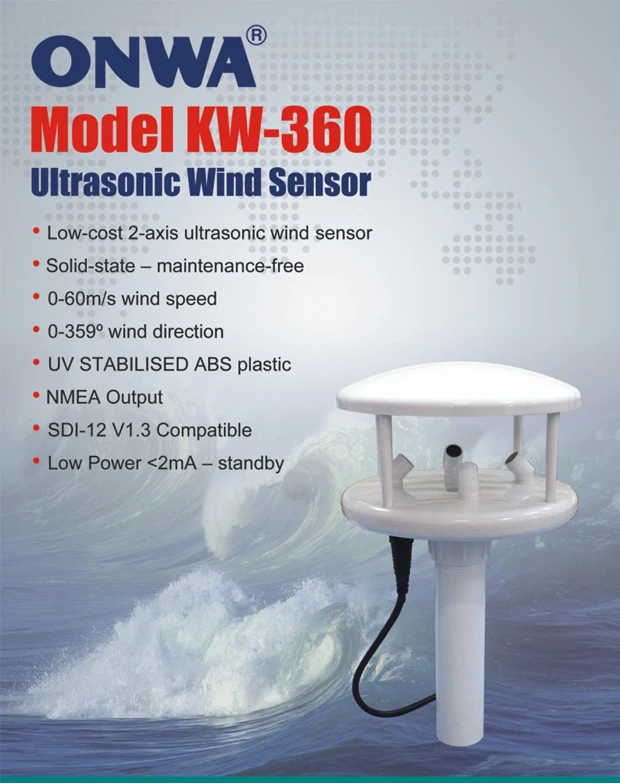

Matsutec Lost-cost 2-Axis Ultrasonic Wind Sensor Weather Station Wind Anemometer KW-360
$399.00
KW-360 Ultrasonic Weather StationKW-360 is a powerful light-weight product that Measures wind speed&direction, temperature, humidity, air pressure and altitude.No calibration neededTwo electrical output, RS485 and RS232Configurable baud rate up to 38400 (4800, 9600, 19200 and 38400)Standard NMEA..
KW-360 Ultrasonic Weather Station
KW-360 is a powerful light-weight product that Measures wind speed&direction, temperature, humidity, air pressure and altitude.
- No calibration needed
- Two electrical output, RS485 and RS232
- Configurable baud rate up to 38400 (4800, 9600, 19200 and 38400)
- Standard NMEA sentences output, $MWV and $XDR
- Can be used in PC with supplied PC software
- No moving parts, does not need constant maintenance
- Every channel output is isolated
- Wide operating voltage range from 10.5 V DC to 40.5 V DC
WIND SPEED
| Range | 0~40m/s |
| Precision | ±2% (at 12m/s) |
| Resolution | 0.01 m/s |
| Measurement Unit | m/s |
WIND
| Range | 0~359.9° |
| Resolution | 0.1° |
TEMPERATURE
| Temperature Measurement Range | -20°C~+75°C |
| Temperature measurement Accuracy | ±0.5°C (at 12m/s) |
| Temperature Resolution | 0.1°C |
| Measurement Unit | °C |
HUMIDITY
| Humidity Measurement Range | 10%~99.9% |
| Humidity measurement Accuracy | ±2%RH (25°C) |
| Humidity Resolution | 0.1%RH |
PRESSURE
| Measurement Unit | Pa |
| Measurement Range | 30000~ 110000 Pa |
ALTITUDE
| Measurement Unit | m |
| Measurement Range | +9000m~ 0m |
COMMUNICATION FORMAT
| Hardware Interface | RS232, RS485 |
| Baud Rate | 2400, 4800, 9600, 19200, 38400 |
WORKING ENVIRONMENT
| Waterproof Grade | IP65 |
| Working Temperature | -20°C~ +75°C |
| Storage Temperature | -30°C~ +80°C |
| Working Humidity | <5%~100% |
| Electromagnetic Compatibility | IEC60945 |
| Input Source | 10.5 VDC ~ 40.5 VDC |

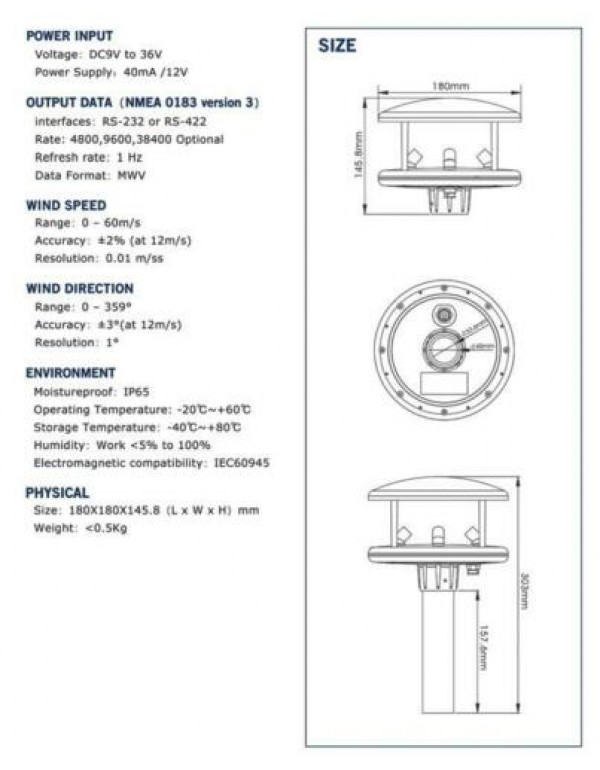

MECHANICAL PROPERTIES
| Size/Weight | 180x180x145.8 (LxWxH)mm <0.5 kg |
EQUIPMENT LIST
| DESCRIPTION | QUANTITY |
|
1 1 1 1 2 4 1 |
