XINUO 5 Inch Marine Ship Navigation Support C-Map Chart GPS Chartplotter XF-520

$246.00

1. Advanced Chart View 2. Standard Chart View 3. Simple Chart View 4. GPS Data 5. 3D Navigation 6. Compass Product Description5”Color LCD with 480 x 272 resoluti..

Ex Tax:$246.00

Brands XINUO
Product Code: XF-520
Availability: In Stock

Qty

Description
Reviews (0)

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

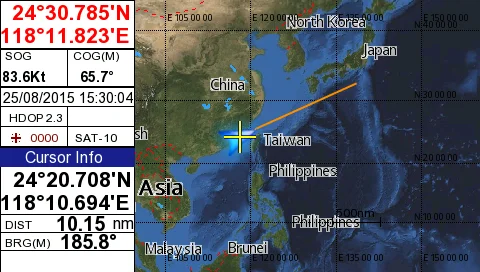

1. Advanced Chart View

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

2. Standard Chart View

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

3. Simple Chart View

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

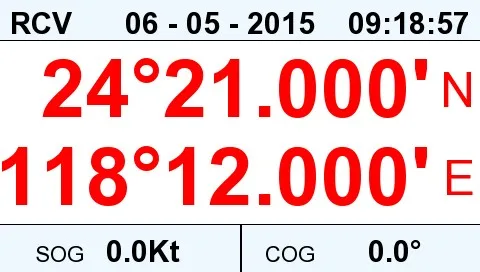

4. GPS Data

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

5. 3D Navigation

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

6. Compass

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

Product Description

5”Color LCD with 480 x 272 resolution, high brightness and wide angle of view.
C-MAP ( MAX ) & XINUO-MAP dual chart systems for user to choose.
Provide AIS input interfaces to connect with AIS device conveniently and display AIS targets dynamically on the chart.
Multi-language support and six display modes options.
Built-in global chart, upgrade chart regularly with free of charge.
Conform to IPX6 water-proof standard.

Display unit	XF-520
Display Type	Color TFT LCD
Display Size	5 inch
Display Resolution	480 × 272 pixels (WQVGA)
Display Brightness	400cd/m2
Language	English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish, Thai, Greek, Indonesian, Japanese, Korean, Spanish; Burmese
Display Modes	Standard Chart View, Simple Chart View, AIS Data , GNSS Data, 3D Navigation, Compass
Memory Capacity	10000 waypoints, 200 routes, 10000 marks, 800 tracks
Interface	0183 Output 2 Ports, AIS Input 1 Ports(Mutual independent, Baud rate can be set indenpently)
Chart	C-MAP (MAX) & XINUO MAP
Power Supply	DC10V-36 V
Enviromental
Working temperature	-15℃~+55℃
Storage temperature	-20℃ ~ +60℃
Waterproofing	IPX6
GNSS
GNSS Receiver	32 channels (Support WAAS/EGNOS/MSAS/GAGAN )
Receive Frequency	L1 (1575.42MHz) B1 (1561.098MHz)
Position Accuracy	GPS&BDS 2.5m
	GPS 3m
	BDS 5m
Speed Accuracy	0.1m/s(50%@10m/s)
Acquisition Time	Cold Start: <32s ,Hot Start:<1s
Tracking Velocity	999 knots
Coordinate Systems	WGS-84 (and others)
Standards
IEC 60945 :2002 EMC related items ETSI EN 301 489-1V1.8.1:2008 EMC related items IEC 60950-1:2006 ETSI EN 301 489-3 V1.4.1:2002 EMC related items IEC 60529:2006 EMC related items ETSI EN 300 440-2 V1.4.1:2010 Spurious related items ETSI EN 300 440-1 V1.6.1:2010 Spurious related items

XINUO 5 Inch Small Size Cheap Marine GPS Chart Plotter & Ship Navigation Support C-Map Chart XF-520 GPS Chartplotter

Packing List
Main Unit×1set	GPS Antenna×1 pc
Mounting Bracket×1pc	User’s Manual ×1 pc
Knob ×2 pcs	Quick Guide ×1pc
Power Cable ×1 pc	Certification ×1pc
Data Cable with 6 pins plug×1 pc	Warranty Card ×1pc
