XINUO 24 inch Marine Color TFT LCD Monitor Boat Display CE Certificate HM-2624

$924.00
XINUO 24 inch Marine Color TFT LCD Monitor HM-2624                            HM-2624          Product Description24 inch High brightness LED backlight, 1920X1080(WUXGA) resolution.Wide temp..
  • Brands XINUO
  • Product Code: HM-2624
  • Availability: In Stock

XINUO 24 inch Marine Color TFT LCD Monitor HM-2624

HM-2624





Product Description

24 inch High brightness LED backlight, 1920X1080(WUXGA) resolution.
Wide temperature range and wide angle of view.
Support VGA ,DVI,HDMI interface.
Adjust brightness by knob.
Designed for desk mounting and flush mounting.





 Display unit HM-2624
 Display Type  Color TFT LCD
 Display Size   24 inch (531mmx299mm)
 Display Resolution 1920 x 1080 (WUXGA) pixels
 Display Brightness  600cd/m2
 Viewing Angle



 Horizontal:170 degree

 Vertical: 160 degree



 Contrast Ratio 1000:1
 Video Input VGA ; DVI; HDMI
 Working temperature -15℃~+55℃
 Storage temperature -20℃ ~ +60℃
 Power Supply AC110V or AC220 V
 Compatible Resolution 1920*1080; 1920*1440; 1680*1050; 1366*768; 1280*720…..
 Menu language English, simplified Chinese, German, Italian, French, Spanish, Portuguese, Korean
 Standards

 IEC 60950-1:2006
 ETSI EN 301 489-3 V1.4.1:2002 EMC related items

 IEC 60529:2006 EMC related items
 ETSI EN 300 440-2 V1.4.1:2010 Spurious related items
 ETSI EN 300 440-1 V1.6.1:2010 Spurious related items







Installation Diagram

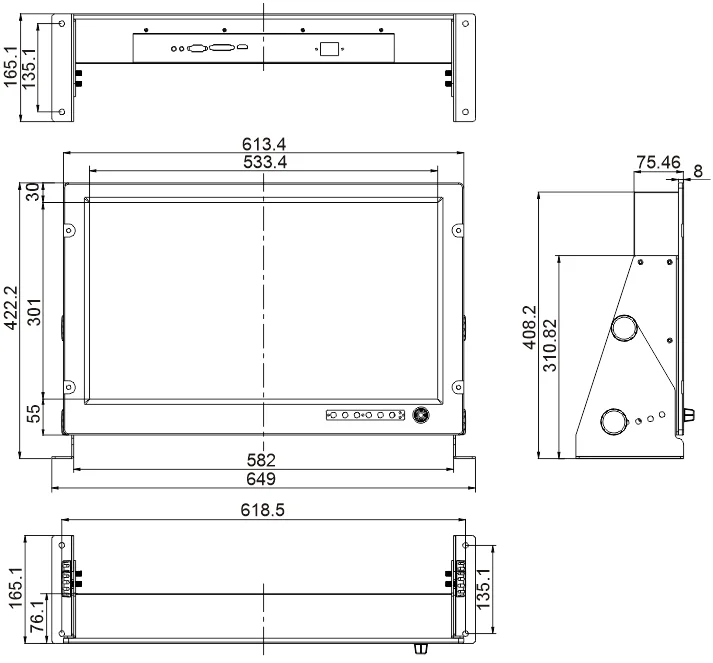

Desk Mounting

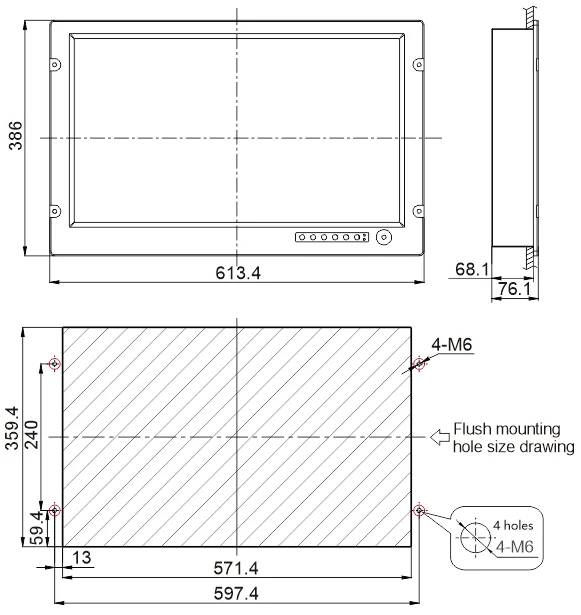

Flush Mounting
